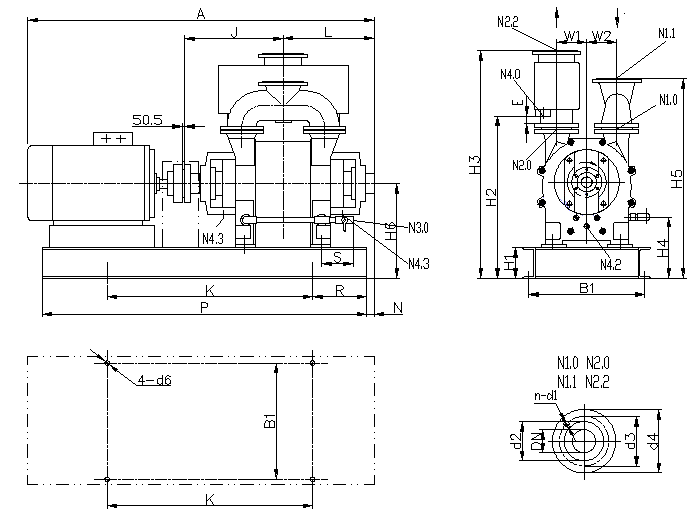

2BE1 202/203/252/253直聯(lián)傳動(dòng)安裝尺寸
N1.0進(jìn)氣端法蘭 N1.1連通管法蘭 N2.0排氣端法蘭
N2.2分離器法蘭 N3.0工作液接口 N4.0分離器排液口
N4.2沖洗、排液口 N4.3泄漏液排放口
|
代號
|
A
|
B1
|
d6
|
E
|
H2
|
H3
|
H4
|
H5
|
H6
|
J
|
K
|
L
|
N
|
P
|
R
|
|
|
2BE1 202
|
1785
|
600
|
27
|
37
|
804
|
1160
|
302
|
1015
|
490
|
507
|
1060
|
469
|
36
|
1625
|
280
|
|
|
2BE1 203
|
2035
|
600
|
27
|
37
|
804
|
1160
|
302
|
1015
|
490
|
567
|
1060
|
529
|
206
|
1625
|
280
|
|
|
2BE1 252
|
2285
|
700
|
27
|
42
|
979
|
1425
|
328
|
1210
|
580
|
630
|
1560
|
595
|
250
|
1800
|
120
|
|
|
2BE1 253
|
2655
|
700
|
27
|
42
|
979
|
1425
|
328
|
1210
|
580
|
705
|
1820
|
670
|
250
|
2060
|
120
|
|
|
代號
|
S
|
W1
|
W2
|
N3.0
|
N4.0
|
N4.2
|
N4.3
|
|
|
|
|
|
|
|
|
|
|
2BE1 202
|
175
|
155
|
155
|
G1"
|
G3"
|
G3/4"
|
G3/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 203
|
175
|
155
|
155
|
G1"
|
G3"
|
G3/4"
|
G3/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 252
|
200
|
215
|
215
|
G11/4"
|
G3"
|
G1"
|
G3/4"
|
|
|
|
|
|
|
|
|
|
|
2BE1 253
|
200
|
215
|
215
|
G11/4"
|
G3"
|
G1"
|
G3/4"
|
|
|
|
|
|
|
|
|
|
|
代號
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
代號
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
|||
|
2BE1 202
|
N1.0
N2.0 |
100
|
18
|
158
|
180
|
220
|
8
|
2BE1 252
|
N1.0
N2.0 |
125
|
18
|
188
|
210
|
250
|
8
|
|
|
N1.1
N2.2 |
125
|
18
|
188
|
210
|
250
|
8
|
N1.1
N2.2 |
150
|
22
|
212
|
240
|
285
|
8
|
|||
|
2BE1 203
|
N1.0
N2.0 |
100
|
18
|
158
|
180
|
220
|
8
|
2BE1 253
|
N1.0
N2.0 |
125
|
18
|
188
|
210
|
250
|
8
|
|
|
N1.1
N2.2 |
125
|
18
|
188
|
210
|
250
|
8
|
N1.1
N2.2 |
150
|
22
|
212
|
240
|
285
|
8
|
|||
